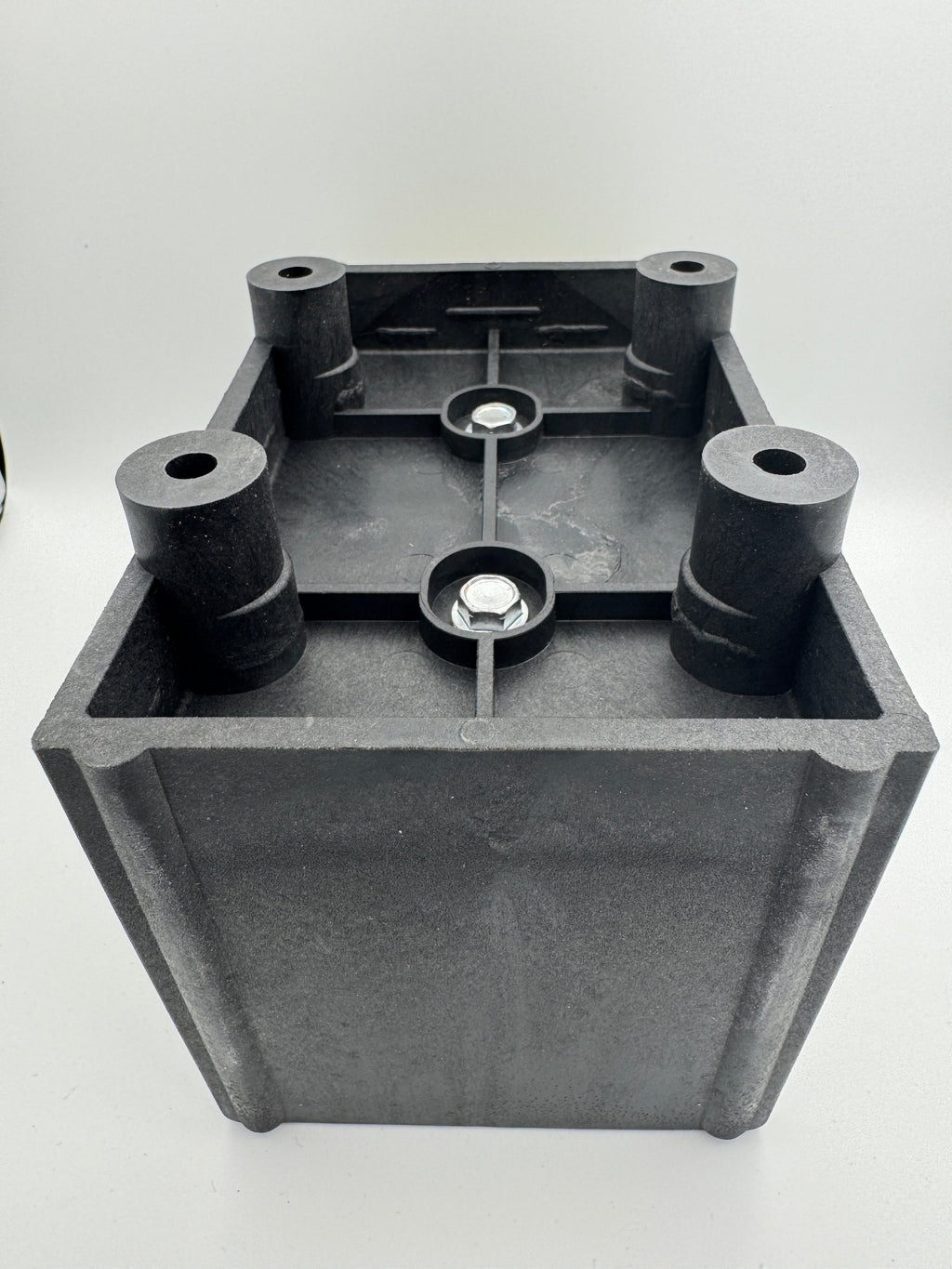

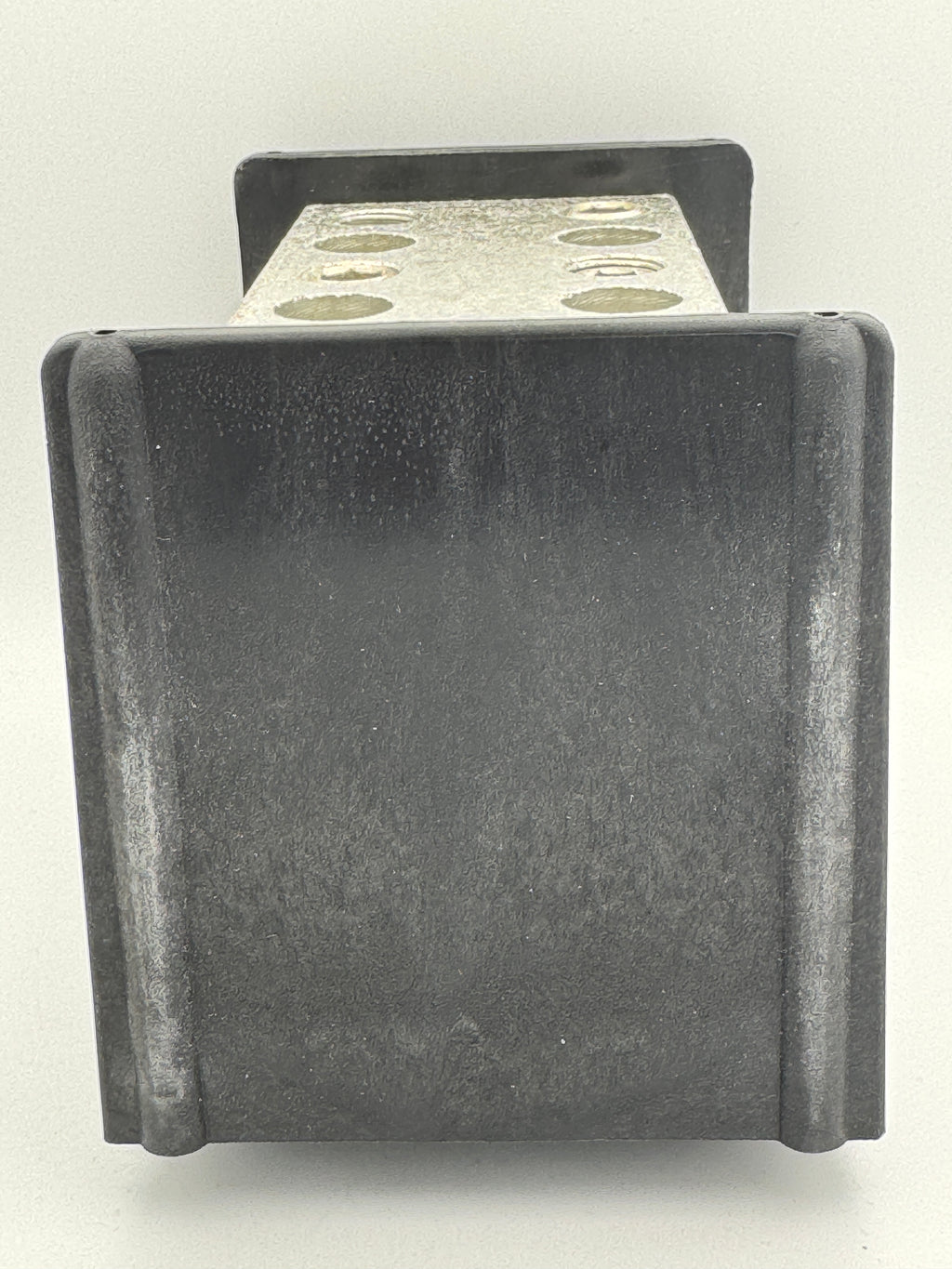

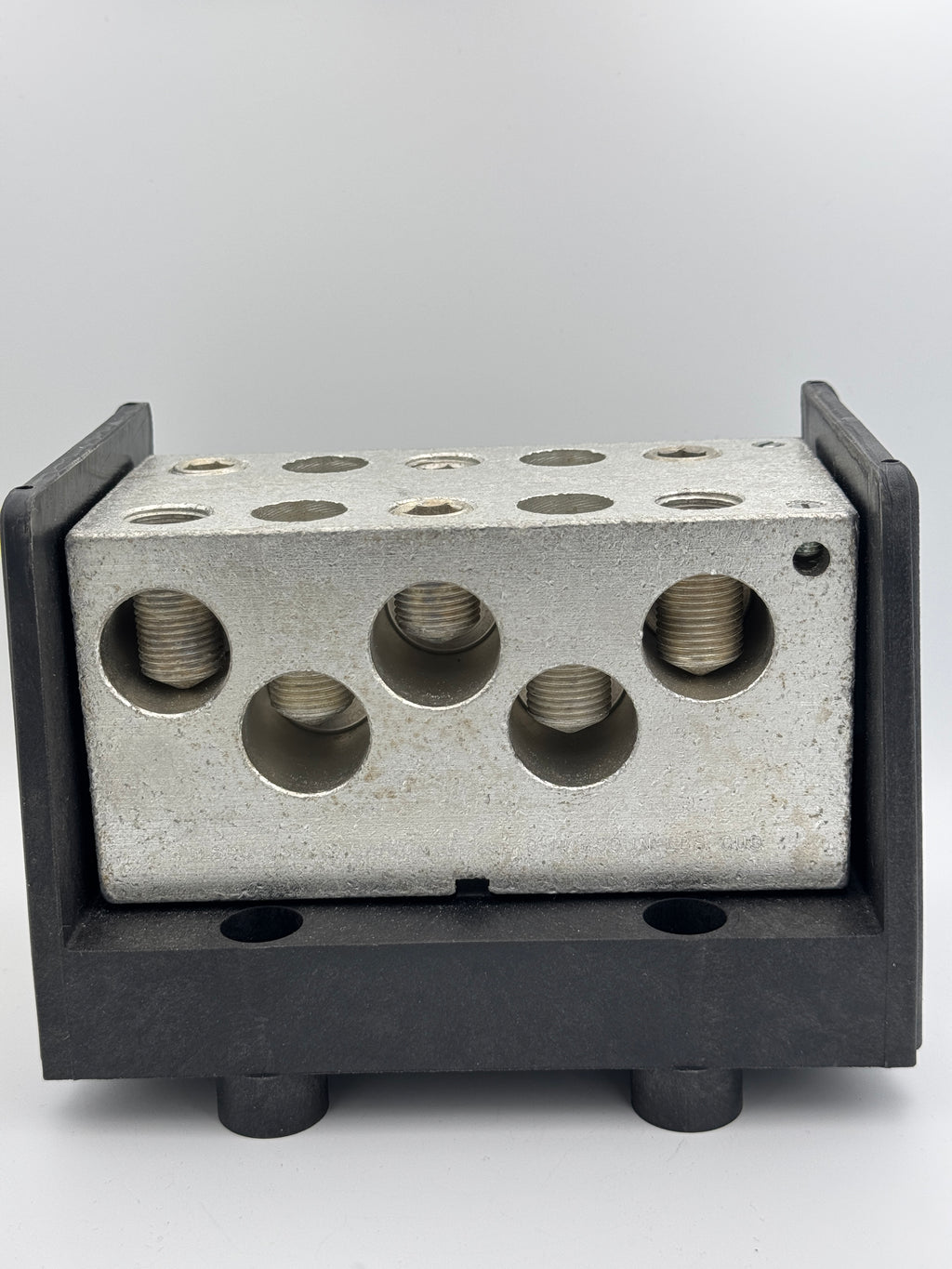

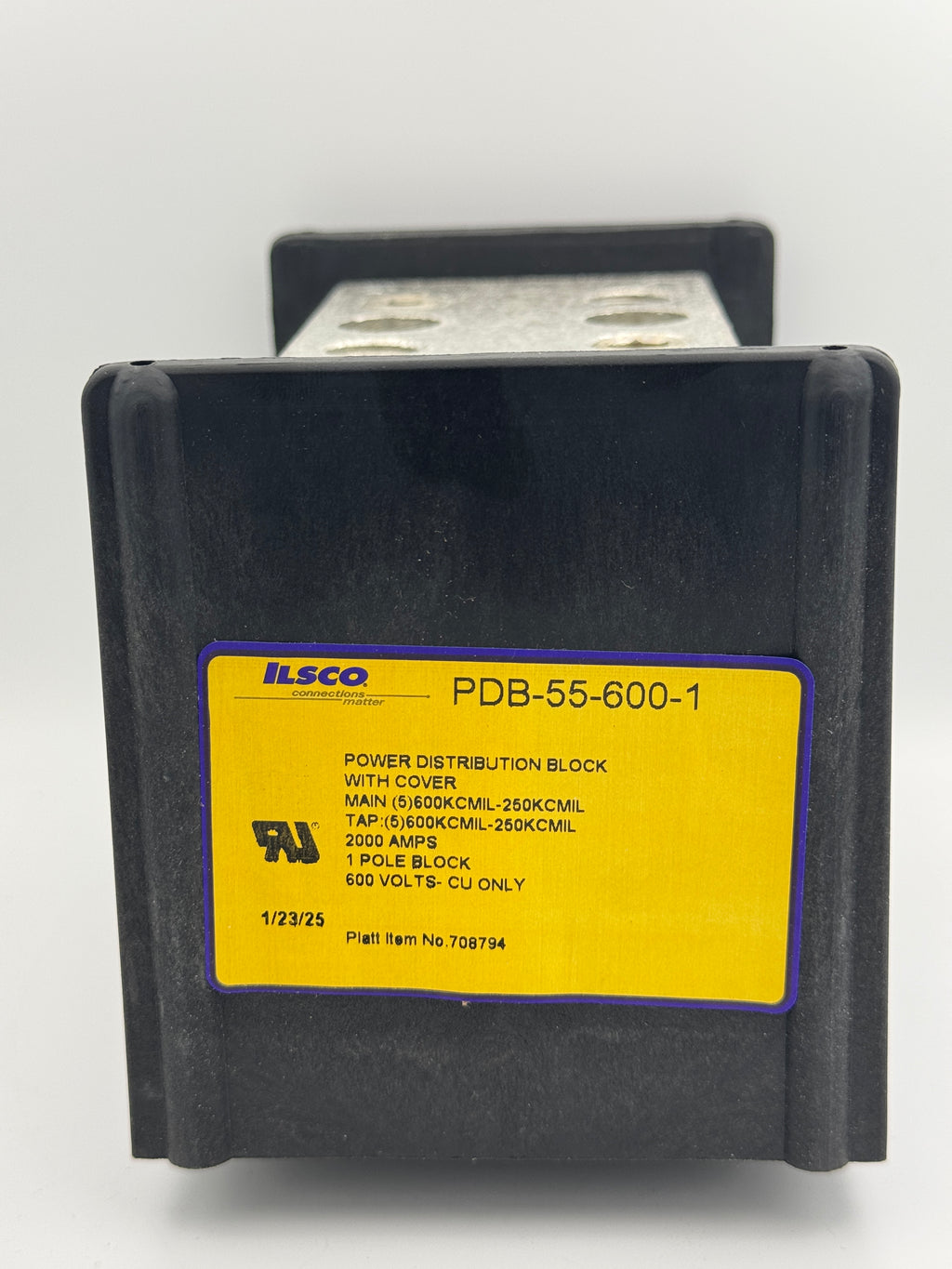

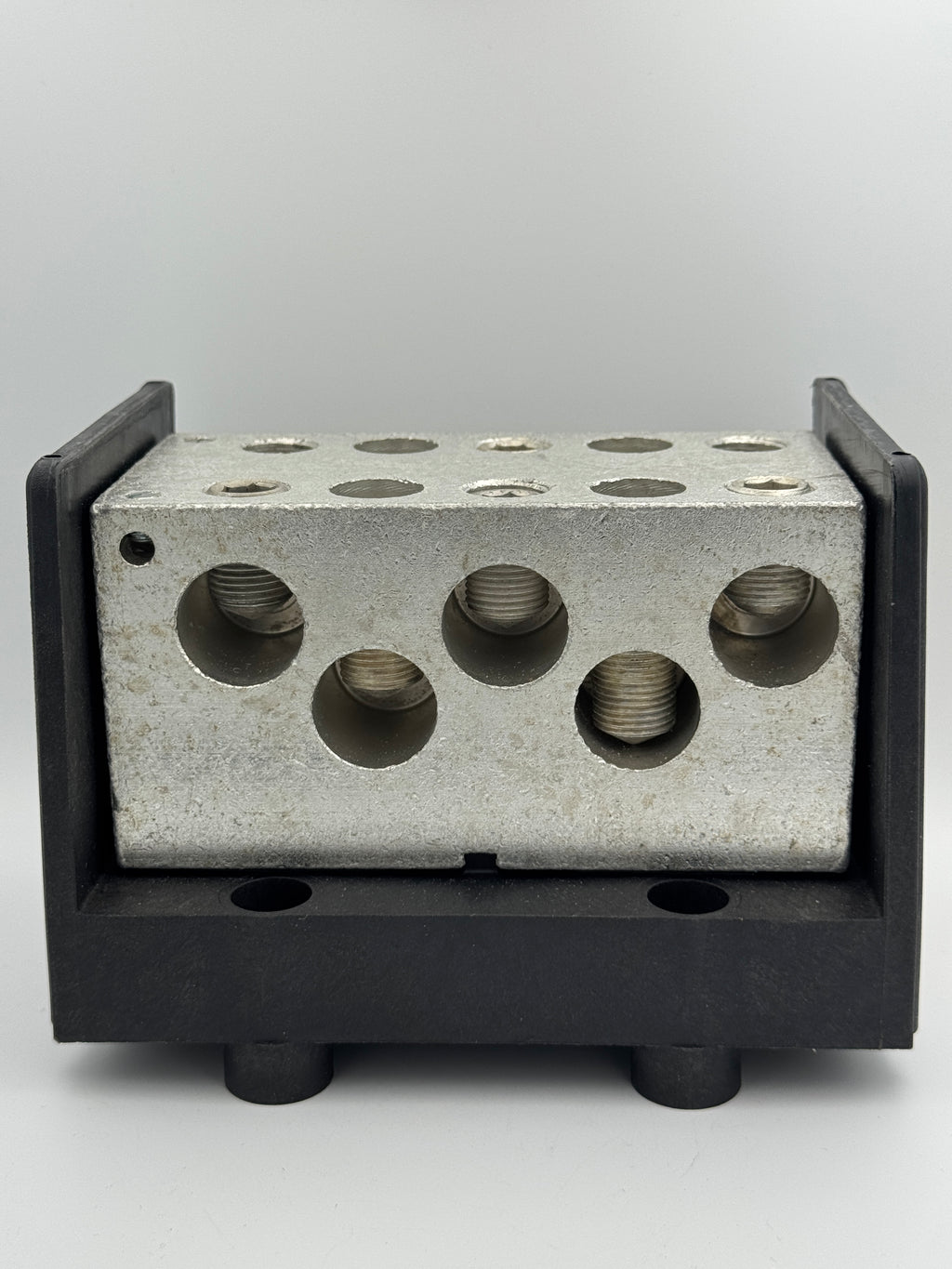

ILSCO PDB-55-600-1 Power Distribution Block - BRAND NEW

Power Distribution Block, Line Conductor Range 600-250, Load Range 600-250, 5 Ports Per Pole Line Side, 5 Ports Per Pole Load Side, 1 Pole, UL, CSA,

Standard Type; 6.324 Inch Length X 4.69 Inch Height Size; Copper Conductor Material; UL 486A/B/1059 Approval; 600 Volt Voltage Rating; 2000 Amp Current Rating; 90 Deg C Temperature Rating; Valox Housing Material; 1 Pole(S)

• Multiple taps - depending on product selected, up to twelve taps can be taken from one or two mains
• Range taking - provides tapping flexibility over a broad wire range
• Electro tin plated provides low contact resistance
• Dual-rated for aluminum and copper conductor except for PDBU-55-600-1 and PDB-55-600-1 rated for copper wire only
• Manufactured from high strength 6061-T6 aluminum alloy - suitable for use with either copper or aluminum conductors
• UL recognized rated 90 deg C and is CSA certified, rated for 600 VAC ensures reliability
• Provides low contact resistance
• Suitable for use with either copper or aluminum conductors
• Ensures reliability
• Range taking for reduced inventories and flexibility

Line Diagram

Spec Sheet

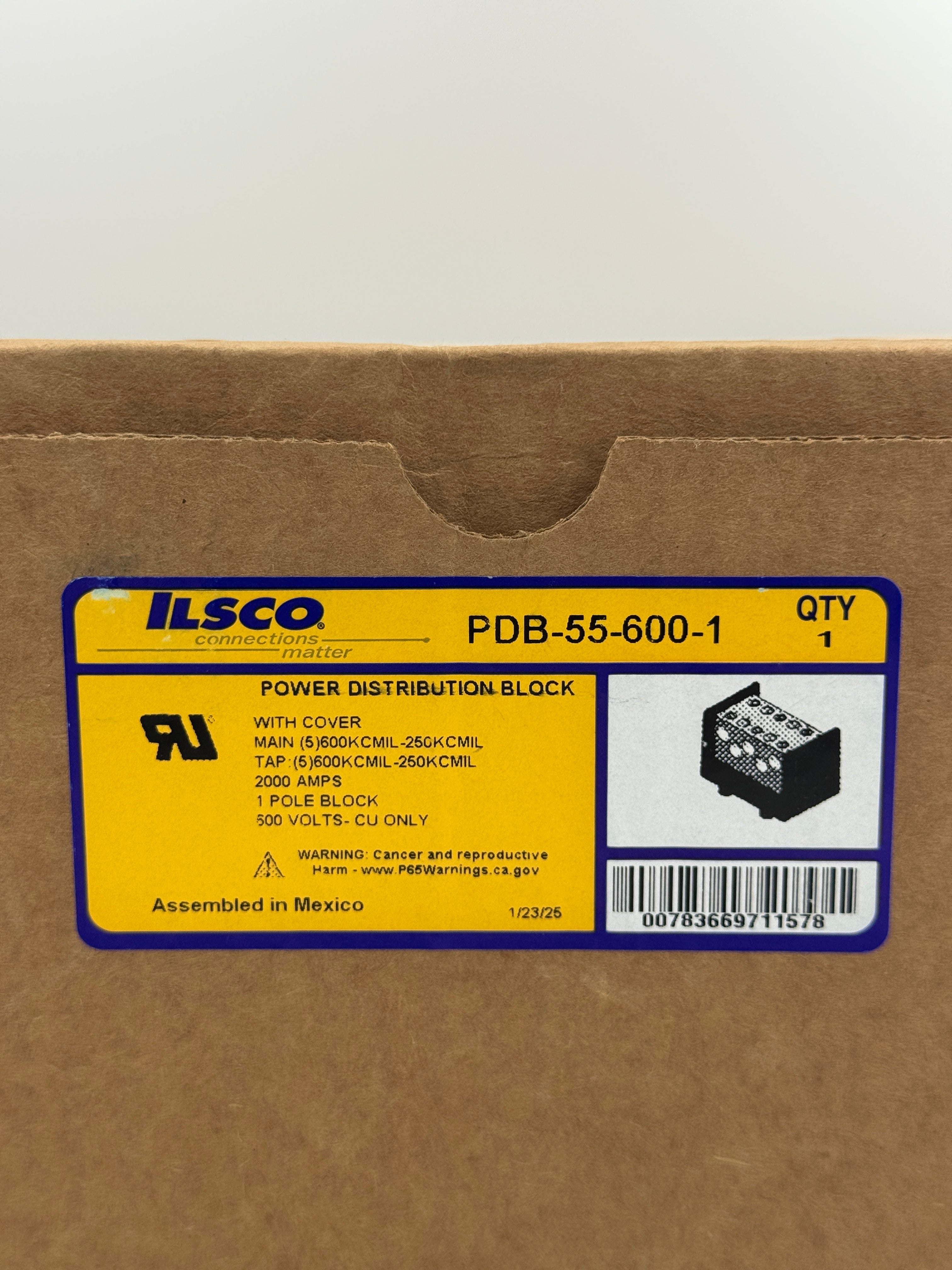

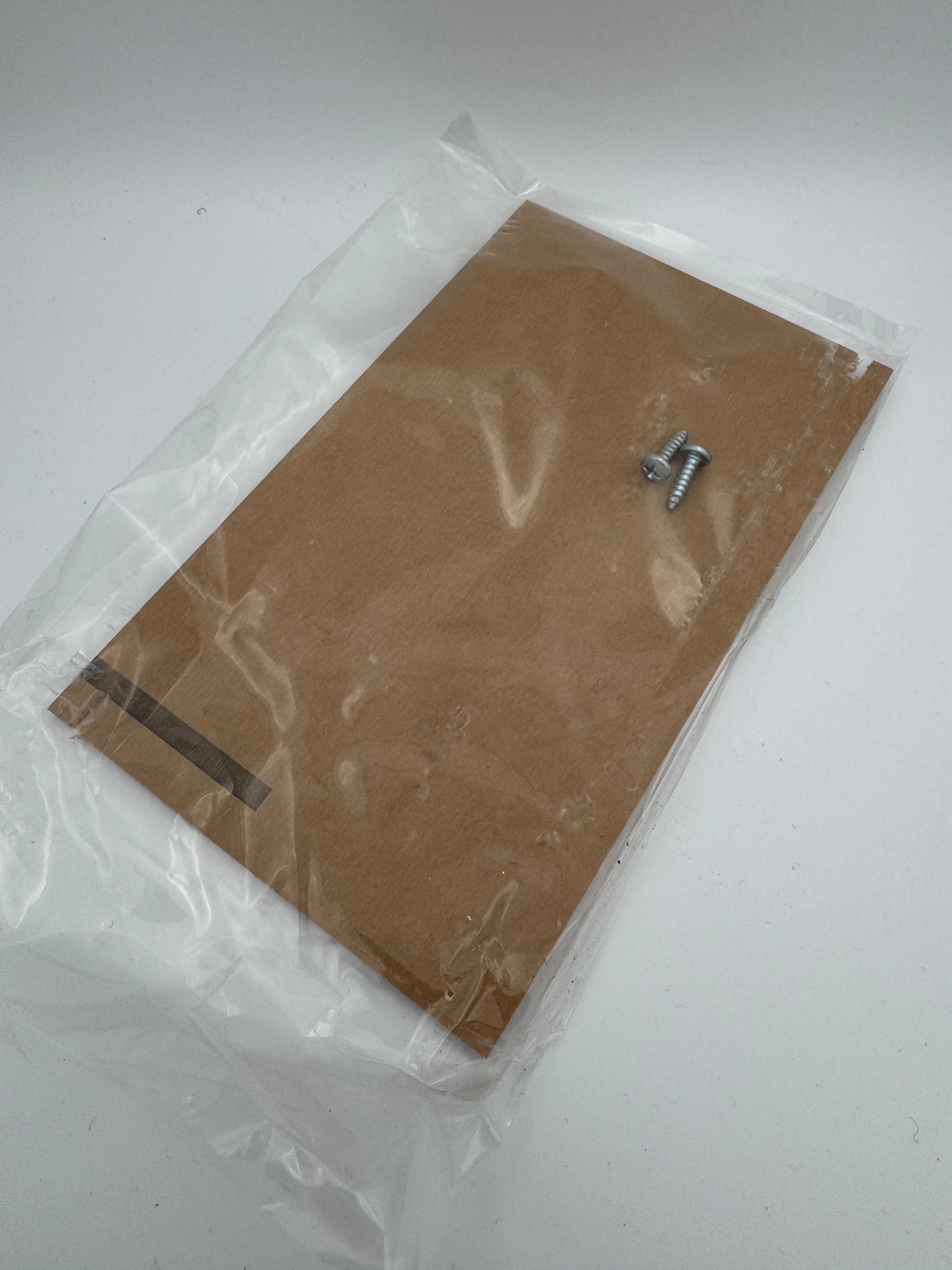

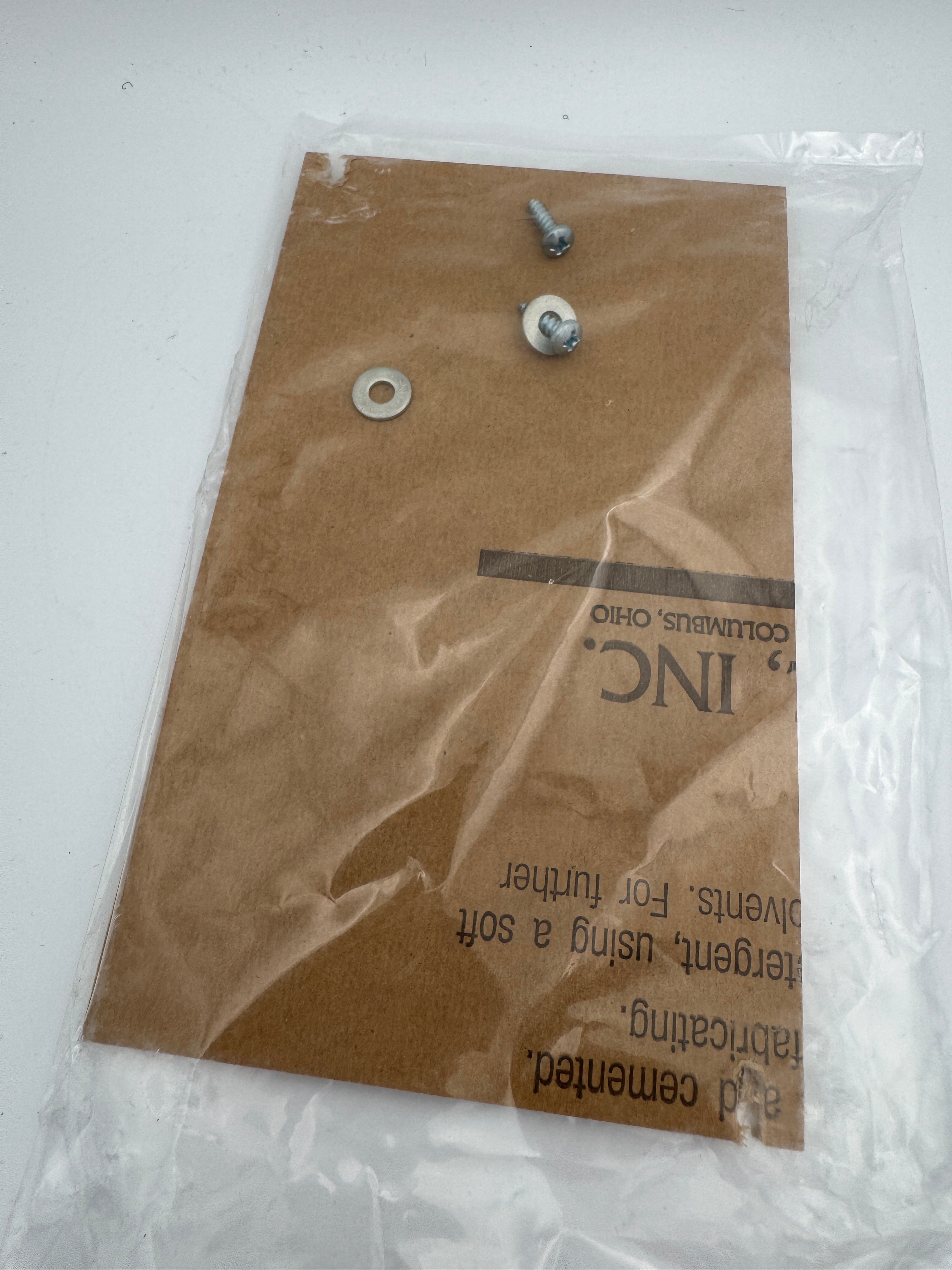

Includes Hardware & Cover, Brand New In Box
