ANEN POWER 16-PORT PA45 SMART PDU POWER DISTRIBUTION UNIT T21 S21 - SZP300B-D16 ⚡️

Overview

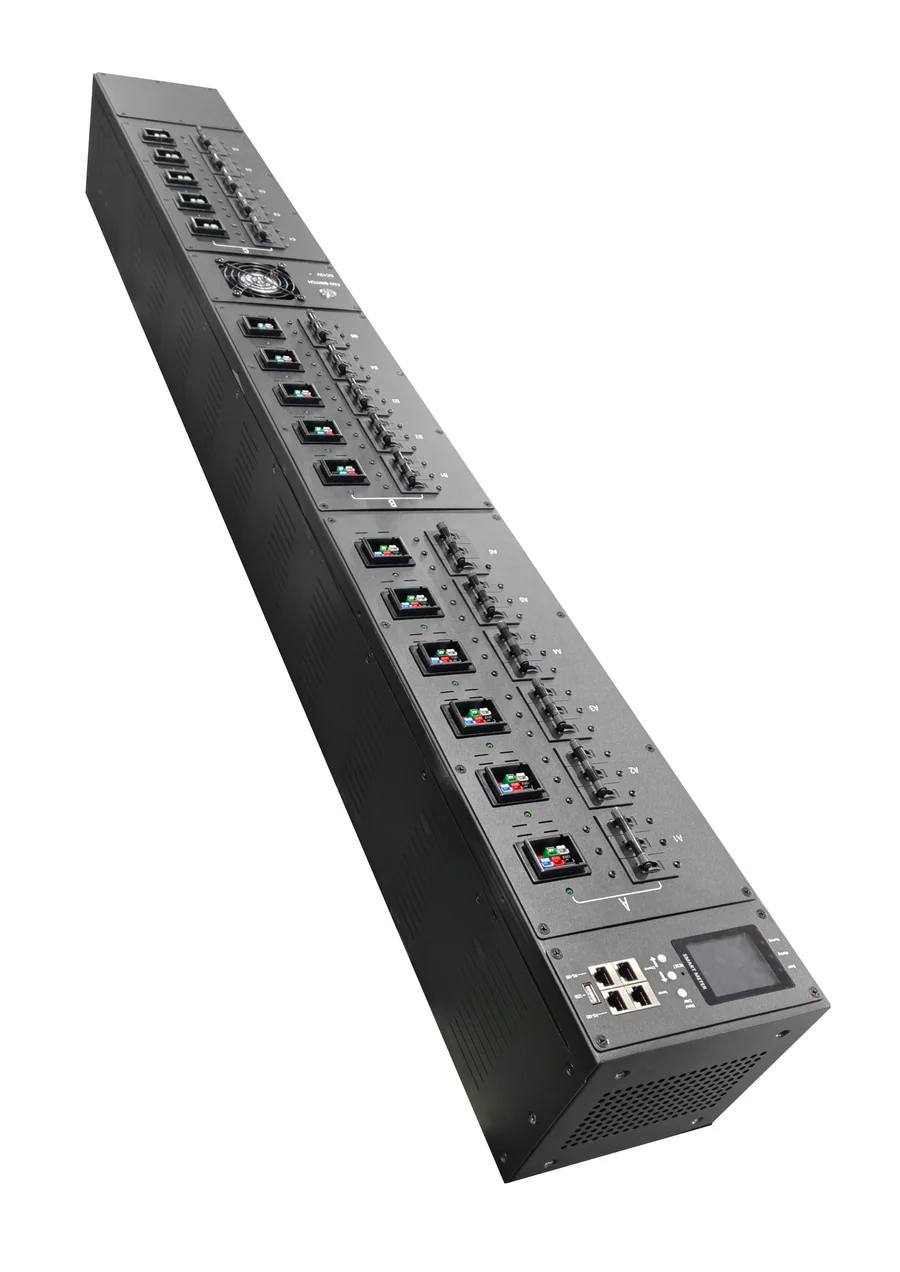

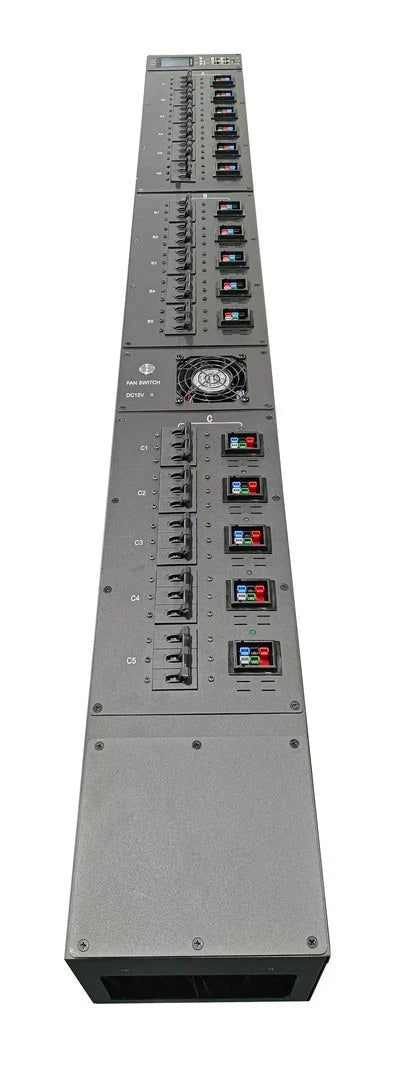

Professional-grade smart power distribution unit designed for high-capacity three-phase and single-phase applications. The SZP300B-D16 delivers reliable power management with real-time monitoring and remote control capabilities.

Physical Specifications

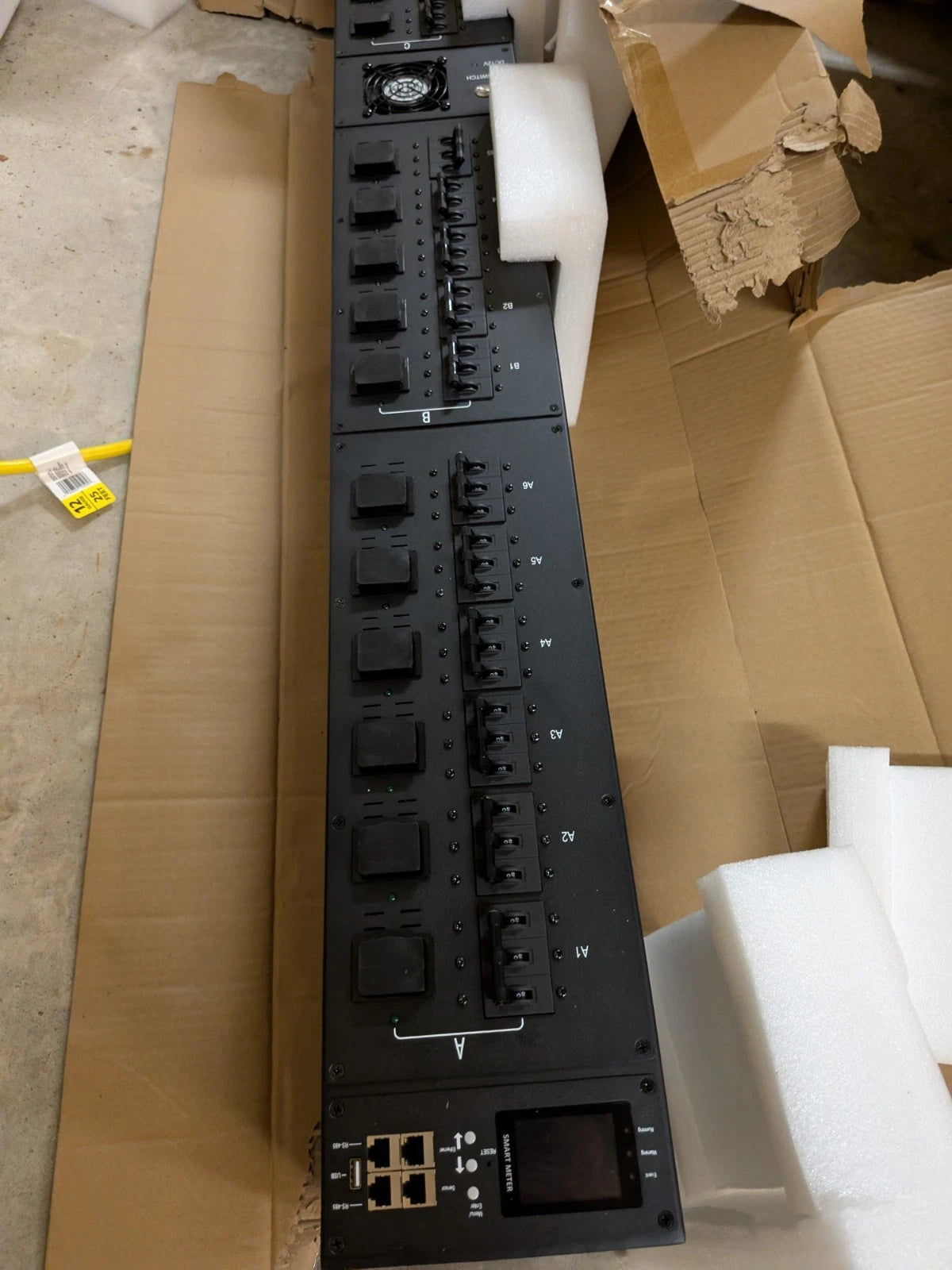

Dimensions: 1483mm L × 175mm W × 181mm D (164.5mm excluding circuit breaker handle)

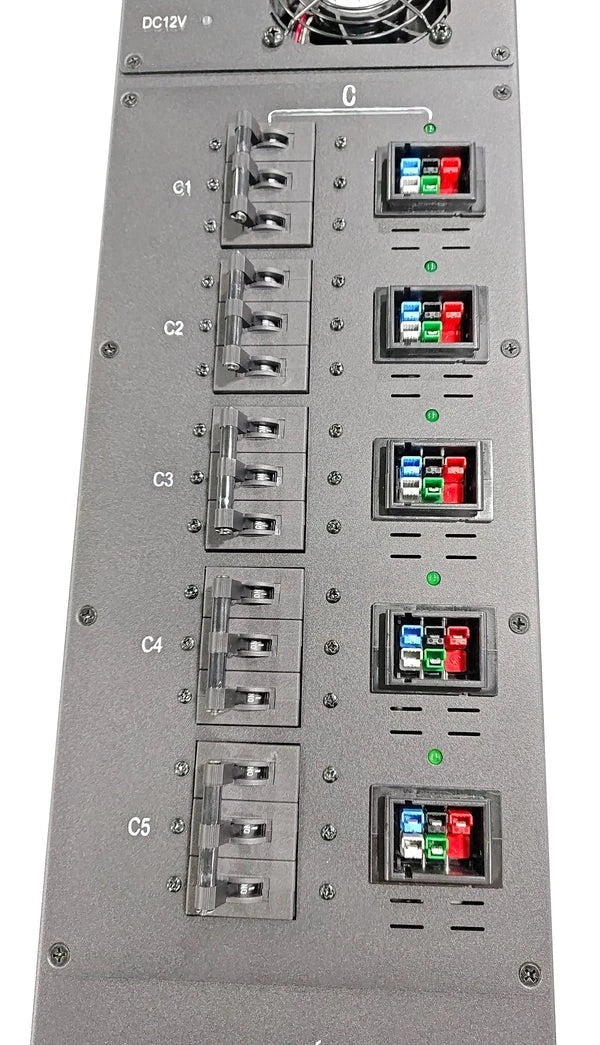

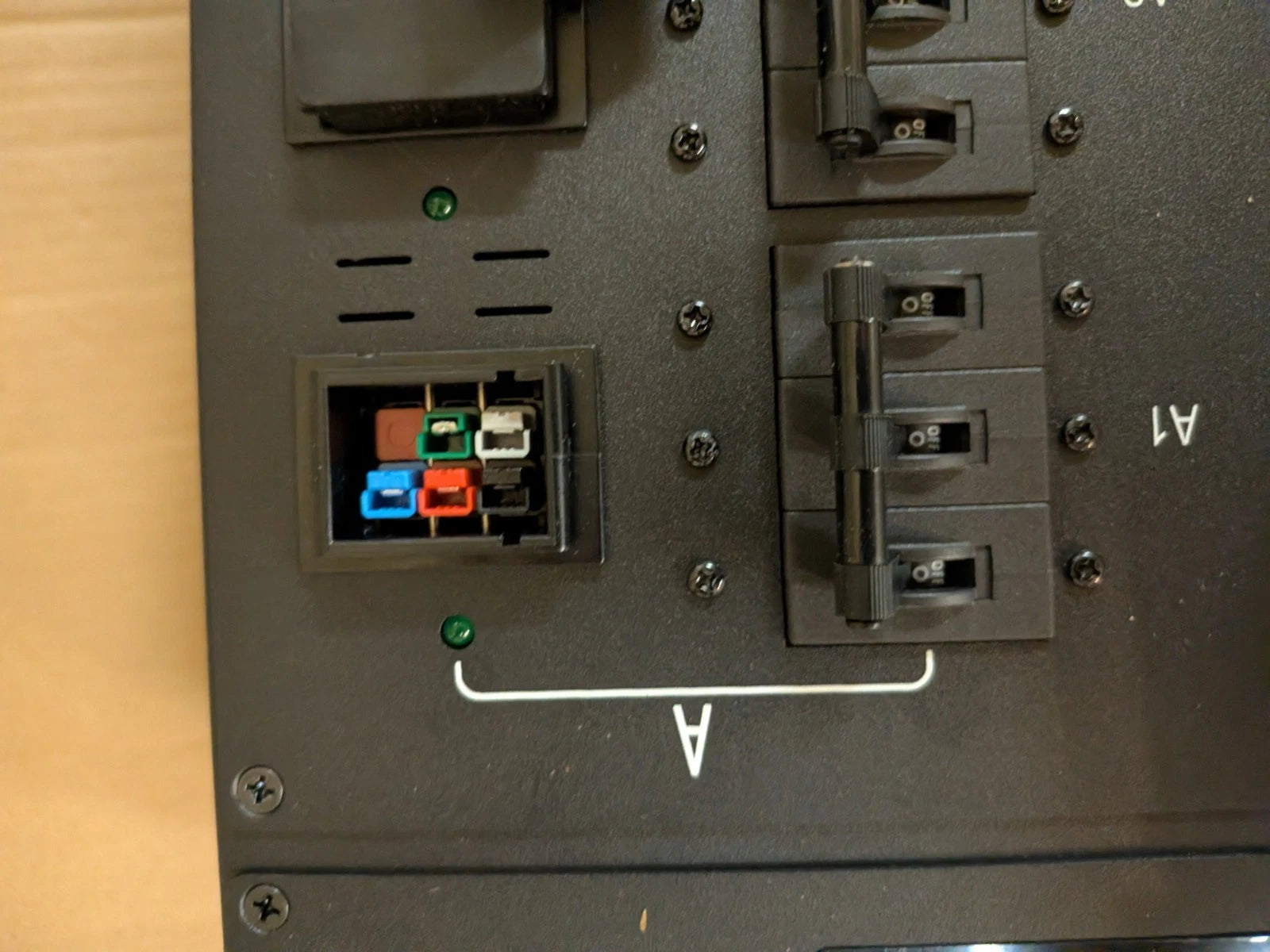

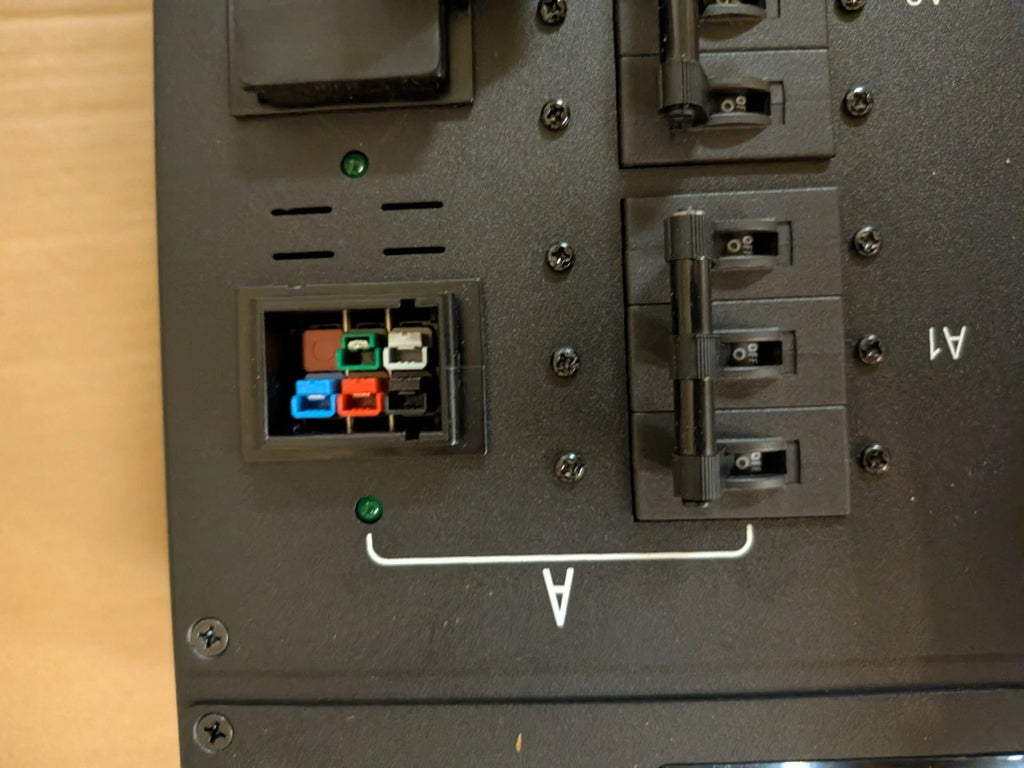

Outlets: 16 P34 (6-Pin PA45) sockets organized in three sections
Enclosure: Galvanized steel with black spray paint finish
Mounting: Vertical orientation with bottom-entry cable wiring (L1/L2/L3/N/PE)

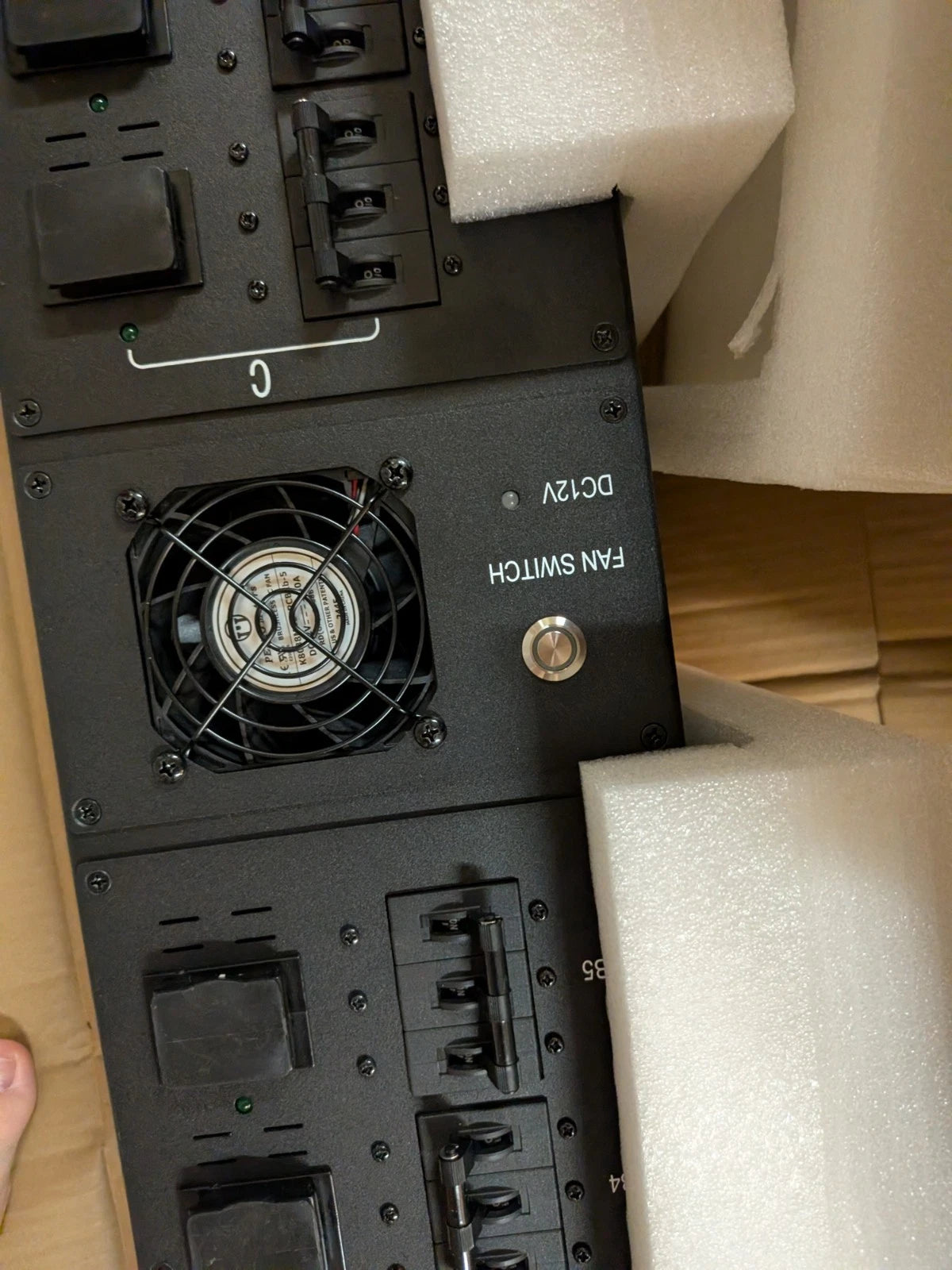

Cooling: Built-in venting fan with LED indicator

Power Specifications

Input Voltage: 3-phase 346–480 VAC
Max Input Current: 3 × 300A
Output Voltage: 3-phase 346–480 VAC or Single-Phase 200–277 VAC
Outlet Rating: 16 ports of 6-Pin P34 Sockets, each rated up to 3 × 25A

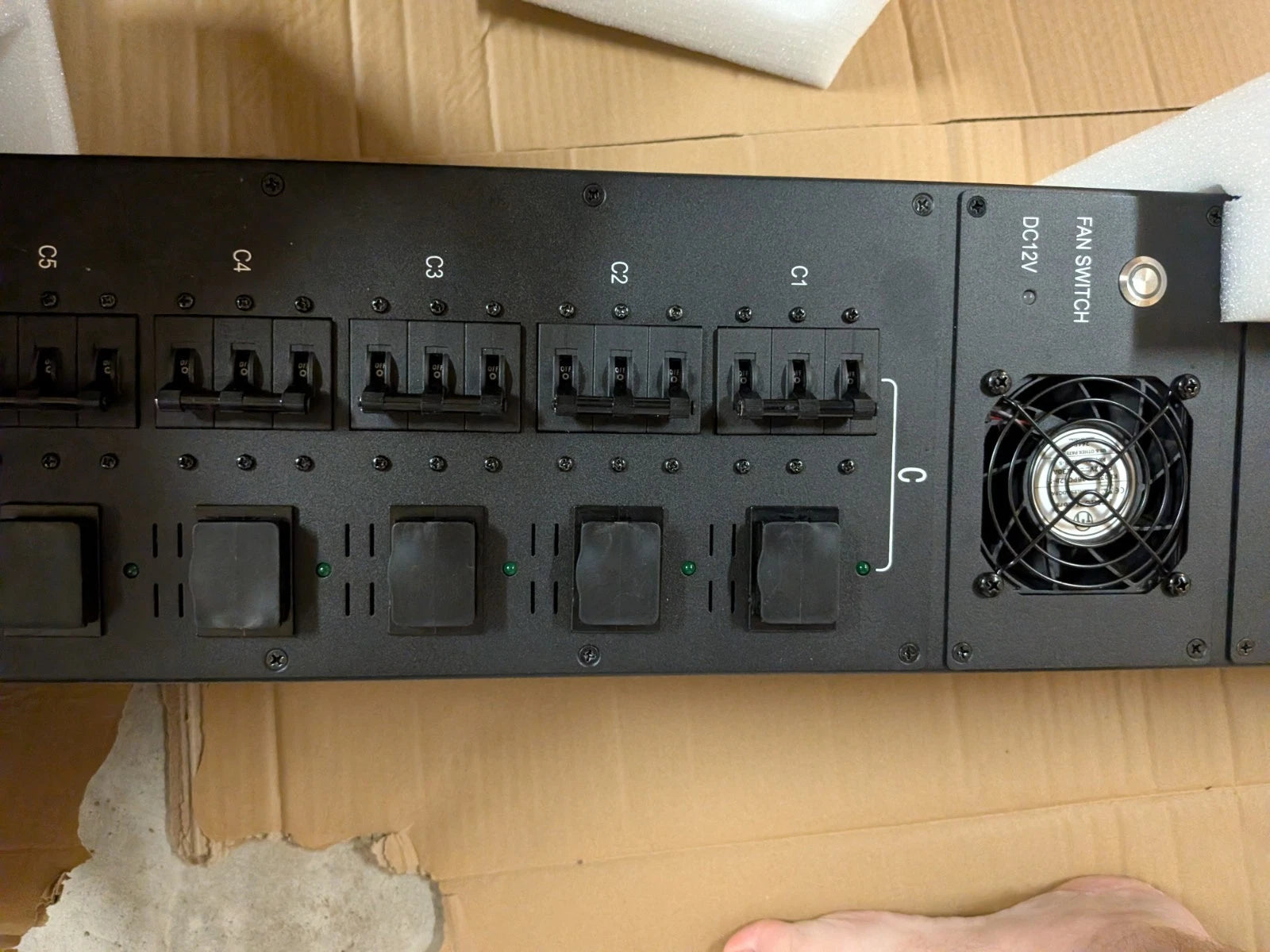

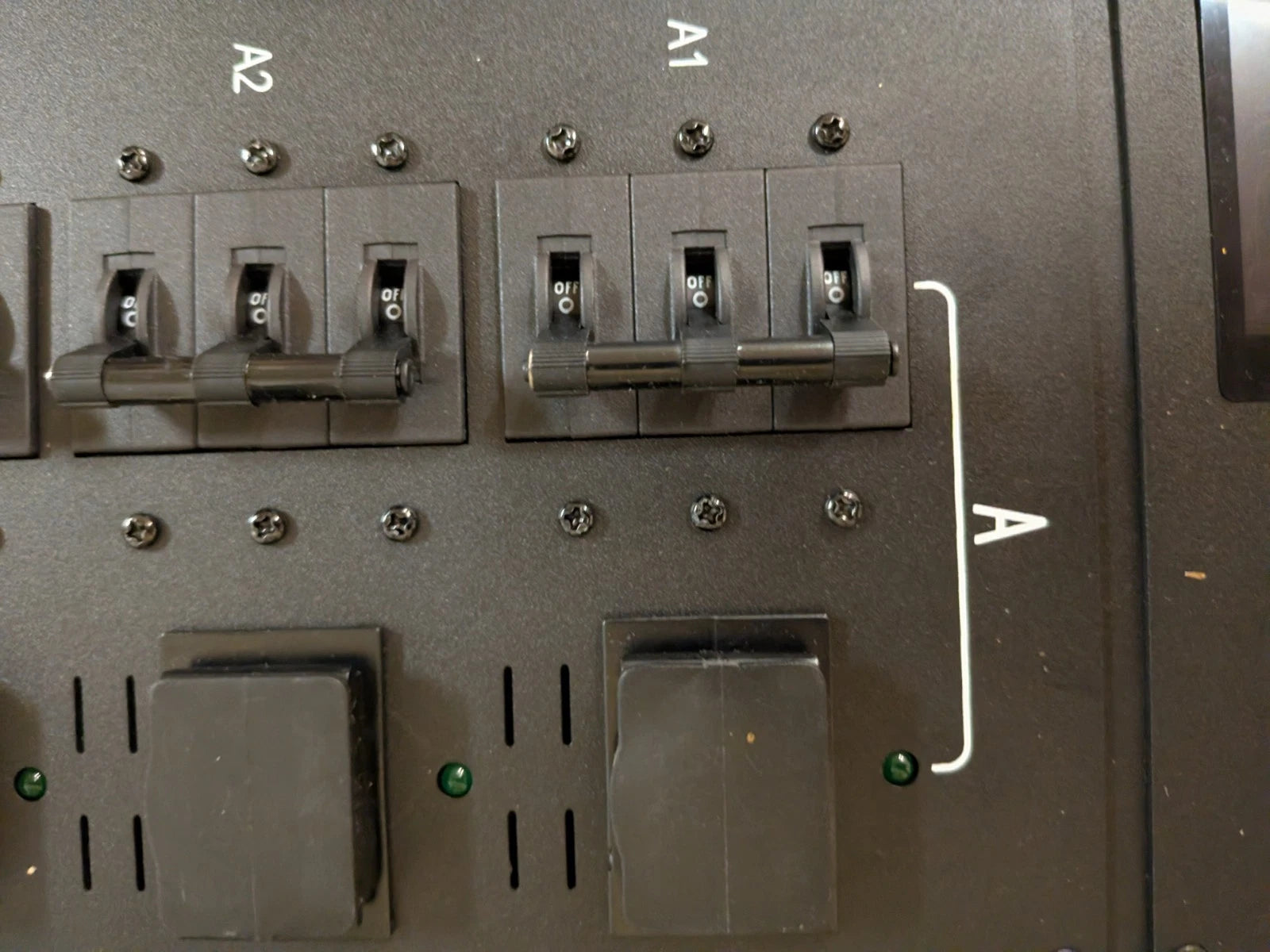

Protection: Individual 3P 25A UL489 circuit breaker per outlet with LED status indicator

Smart Monitoring & Control

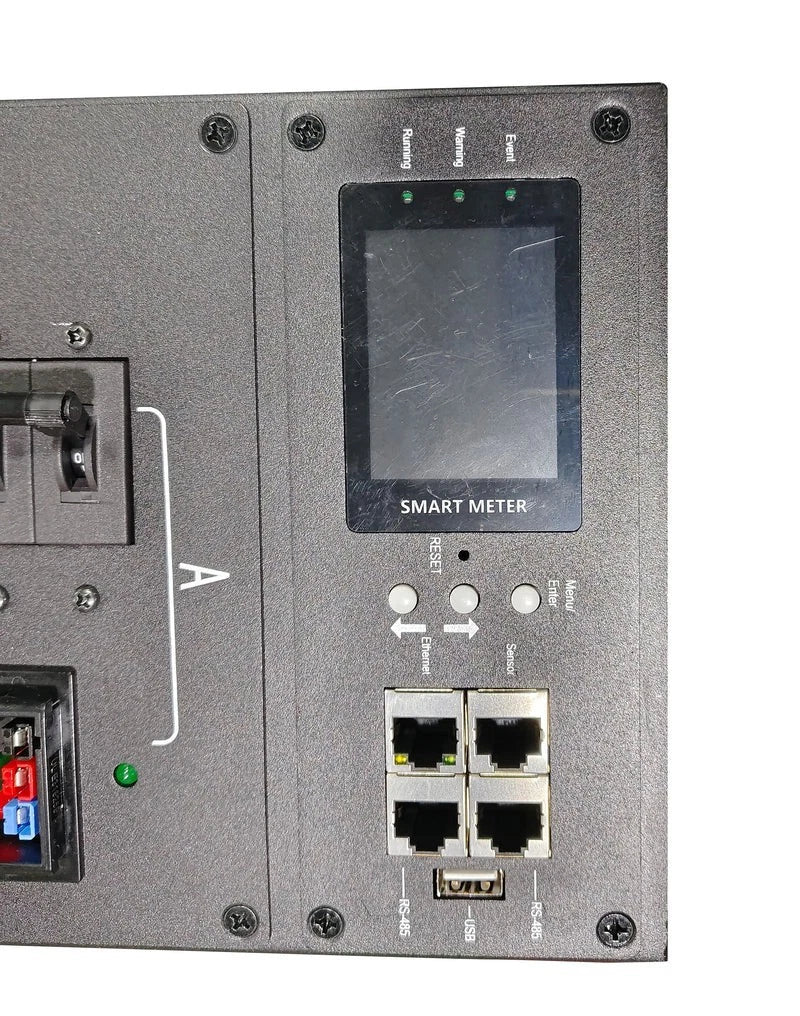

Onboard Display: LCD smart meter with menu control
Local Monitoring: Real-time input and per-port current and power readings

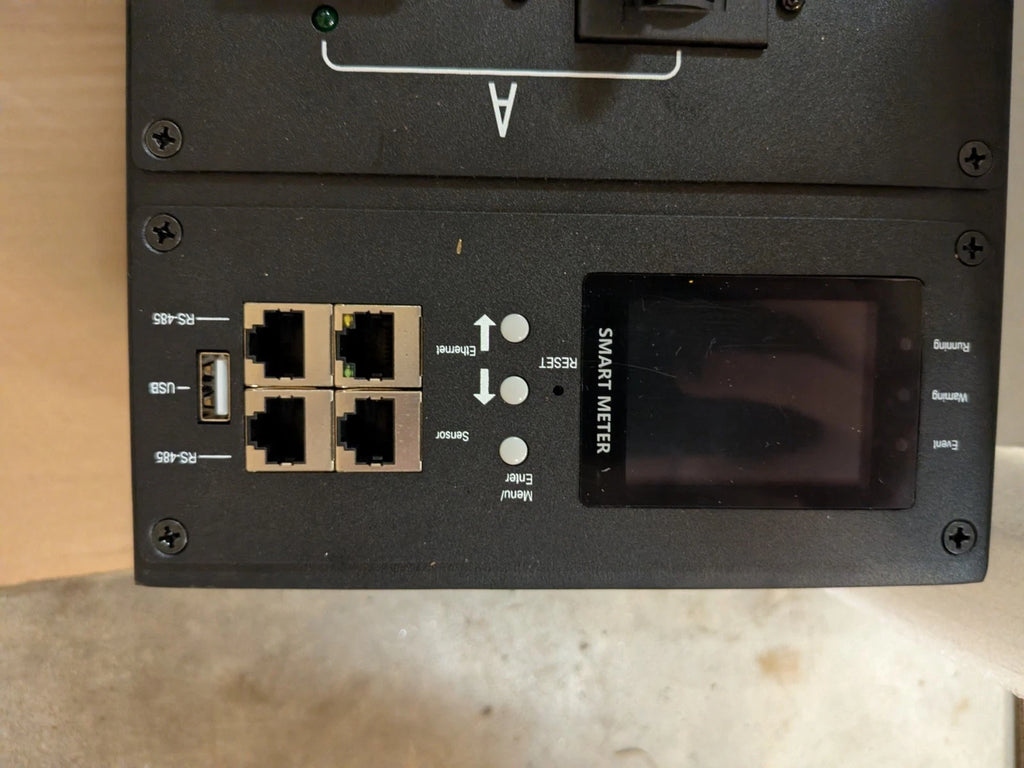

Connectivity: 1× Ethernet, 1× Sensor, 2× RS485 interfaces
Protocols: HTTP, SNMP, SSH2, MODBUS support
Remote Capabilities: Monitor input and per-port current, voltage, power, power factor, and KWH; remote ON/OFF control for each port

Certification

UL STD 62368-1 and CSA STD C22.2 No. 62368-1 compliant with ETL certification mark

PDU is compatible with T21 and S21 miners.

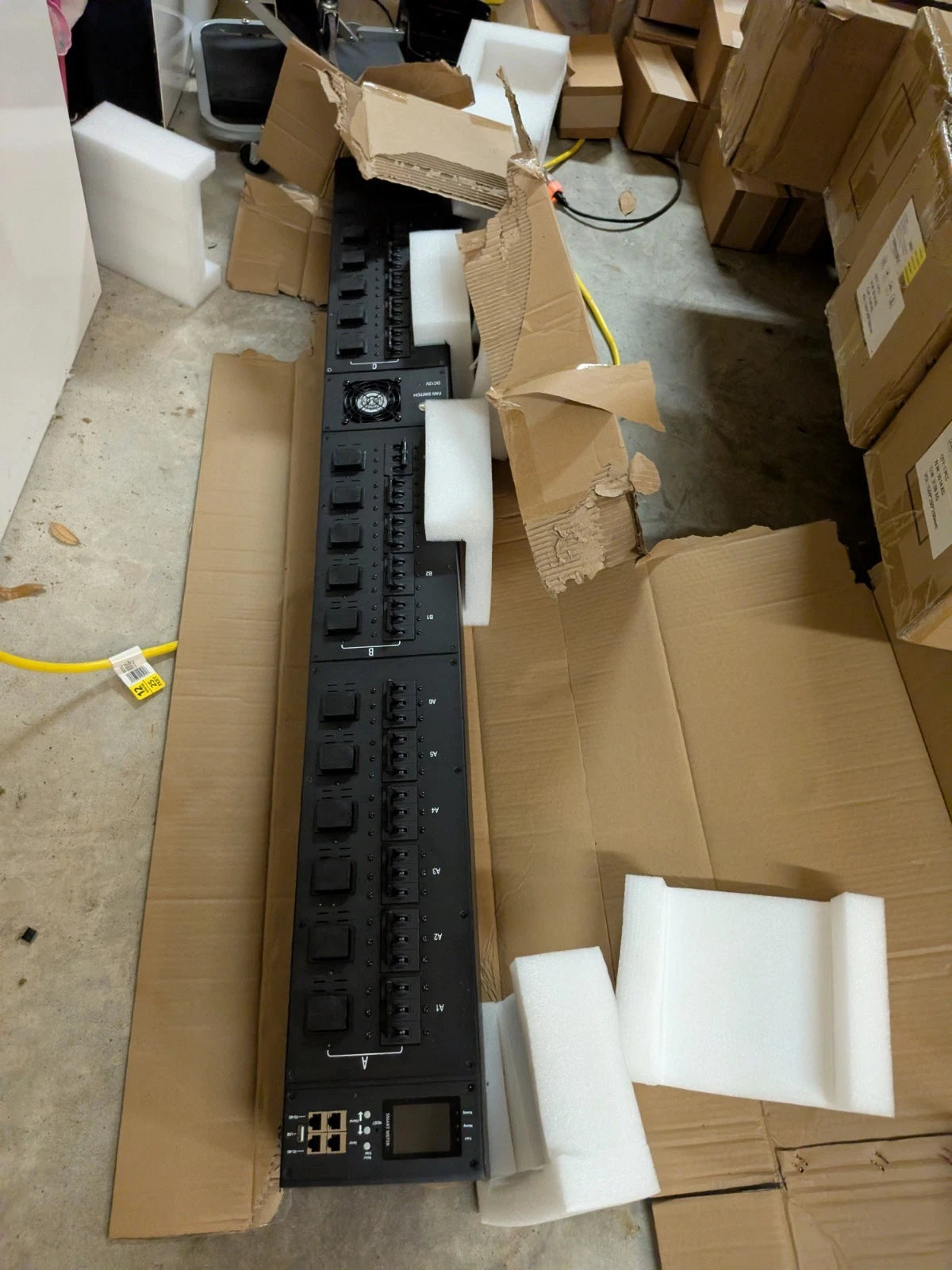

1 Piece, Brand New In Box
